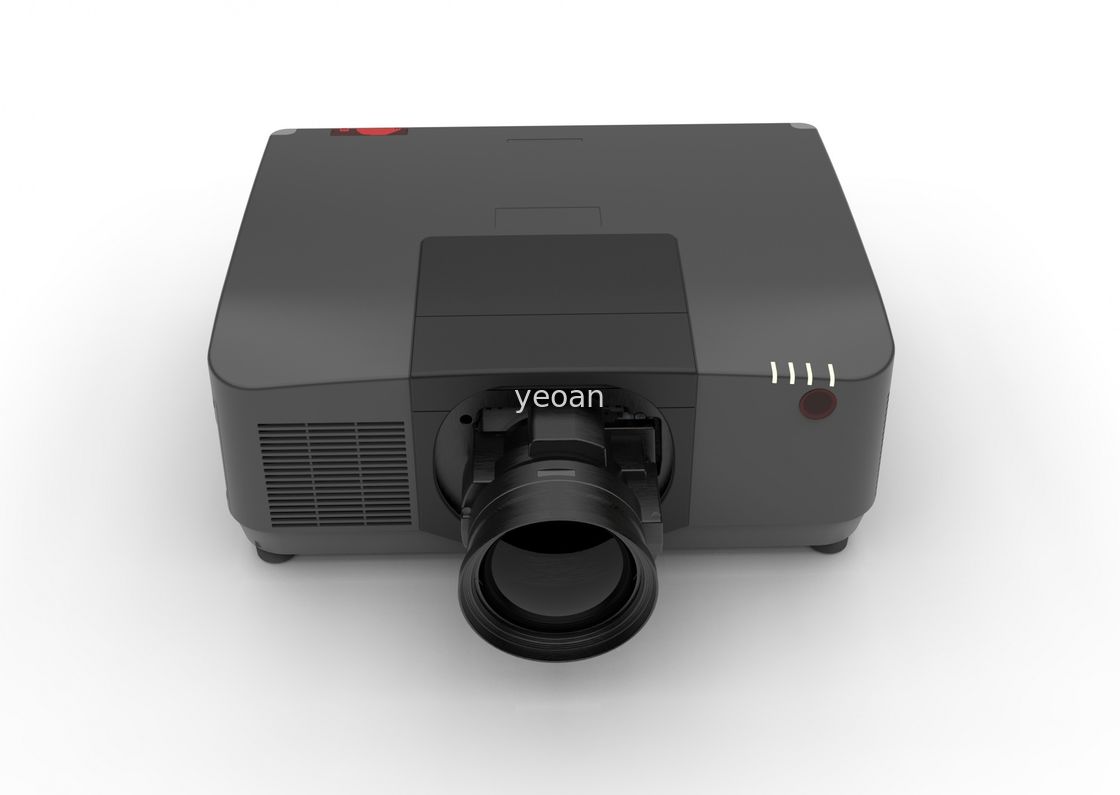

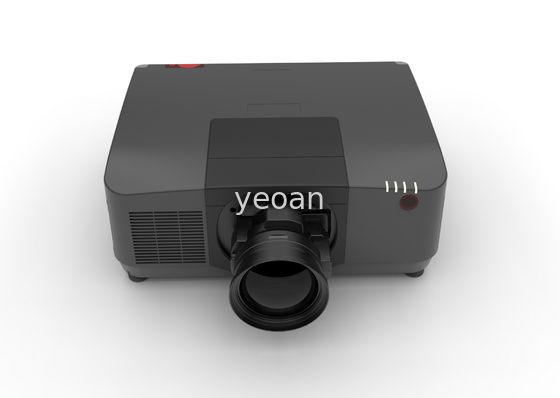

Automatic Large Venue Projectors HD 3LCD WUXGA 4K 20000Lm

Brand Name:	Yeoan
Model Number:	YG1606U
MOQ:	5
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Display Technology:

3LCD

Projection Light Source:

Laser

Light Luminance:

20000 Lumens

Standard Resolution:

WUXGA (1920 X 1200)

Projection Ratio:

1.24-2.01 :1

Aspect Ratio:

16:10 Native:16:10(Compatible: 4:3/16:9)

Focus Mode:

Electric Motorized

Keystone Correction:

Automatic, Vertical: ± 30 Degrees Horizontal: ± 30 Degrees

Projection Mode:

360° Projection

Packaging Details:

Carton box size: 745**370*630mm (not including len)

Highlight:

HD 3LCD Large Venue Projectors

3LCD WUXGA Large Venue Projectors

20000Lm large venue 4k projector

Product Description

Highlights:

• Edge blending
• Lens shift function
• Adjustable brightness
• Lens position memory, lens lock function
• Sealed dustproof design
• NFC function
• Timer power on/off function
• 30,000H ultra-long laser life
• 3,000,000:1 dynamic contrast ratio
• Projection ratio: 1.24-2.01
• Hexagonal correction & multi-point correction
• 360° all-round projection

Application:

Widely used at large venues, optional lens for different projection distance.

Projector specifications
Model No.:	YG1606U
Display technique	3LCD
Standard resolution	1920 x 1200

Brightness(TYP)	20000
contrast ratio	5000,000:1
throw ratio	1.24-2.01 @100
projection picture size	60~500''
focus mode	electric motorized

Power consumption	100~240V@ 50/60Hz
Power consumption	1155W(max)/1000W( normal ) 825W(ECO 1)/580W(ECO 2)
speaker	N/A
Noise	46dB(max / standard)43dB(ECO 1)/41dB(ECO 2) 【* testing environment temp. 23±2℃,testing stardard. ISO 7779:2018】

dimension(mm)	599X240.2X493.8(w/o lens)
product N.W. (kg)	28.9

keystone correction	V: ±30° ; H:±30°; 4-corner correction, multi-point correction, curved surface correction
projection mode	360° Table front projection; ceiling mounted front projection; ceiling mounted rear projection; table rear projection

VGA	*1
DVI	*1
HDMI 1	*1
HDMI 2	*1
HDMI OUT	*1
LAN	*1
Wired R/C IN	*1
Wired R/C OUT	*1
USB-B	*1
USB-A	*1
RS-232 IN	*1
RS-232 OUT	*1
AUDIO IN	*1
AUDIO OUT	*1
HD BASET	*1
DMX512	*1
DVI	*1
SDI	optional
accessories
machine	*1
power cord	*1
remotor	*1
DMX512 wire	*1
user guide	*1
acceptance certificate	*1
screws	M4*6
power cord buckle	*1
HDMI wire	*1
