| Brand Name: | Yeoan |
| Model Number: | YAM8062 |
| MOQ: | 5 |
| Payment Terms: | L/C, T/T, Western Union |
| Brightness | 8300lm |
| Display Technology | 3LCD |
| Projection Light Source | Laser |
| Standard Resolution | WUXGA (1920 x 1200) |
| Lens Options | Available |
| Standard Lens Ratio | 1.30-3.02:1 |
| Lens Shift | V: +50% to -10%, H: ±20% |
| Aspect Ratio | Native: 16:10, Compatible: 4:3/16:9 |
| Focus Mode | Manual or Auto optional |
| Keystone Correction | V: ±30°, H: ±30° |

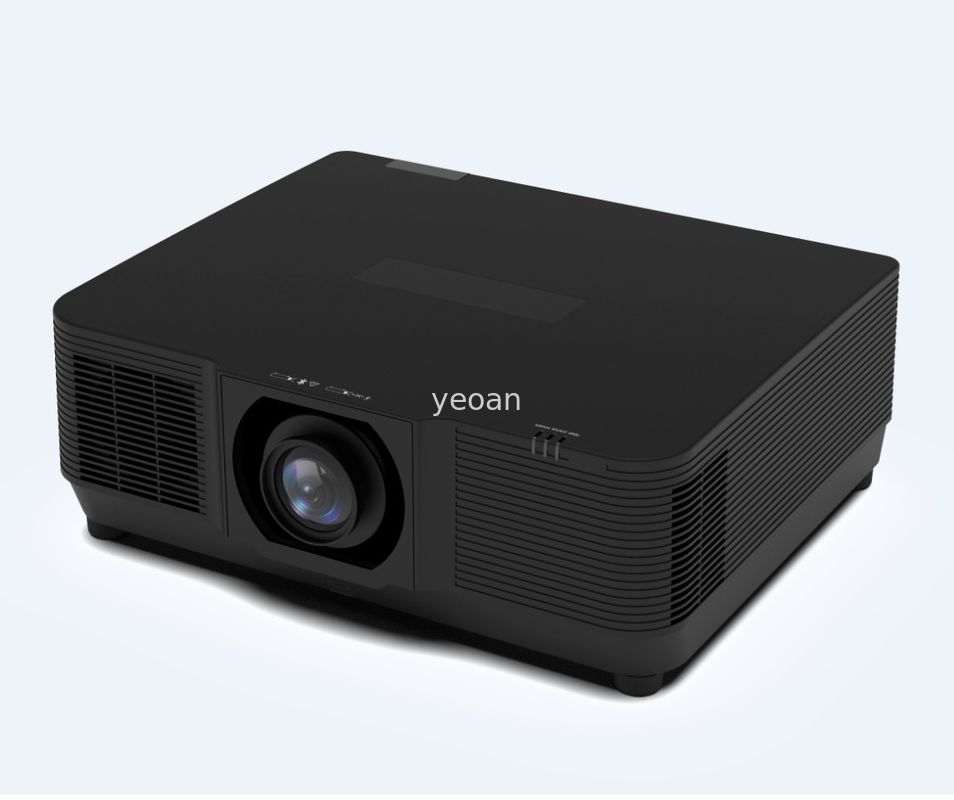

This high-performance laser projector features a restrained and elegant exterior design with professional-grade projection capabilities for large venues and demanding applications.
Ideal for outdoor projection, extra-large meeting rooms, house halls, academic lecture halls, hospital halls, churches, factory workshops, and other large venue applications.
| Lens | Optional |
| Light Source | Laser |
| Brightness | 8300lm |
| Panel | 3x0.76" Sony |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light Source Lifetime | 20,000 hours (Normal and ECO modes) |
| Zoom/Focus | Powered |
| Throw Ratio (16:10) | 1.30-3.02 |
| F Number | F1.7~2.0 |
| Focal Length | 21.8-49.8 |
| Zoom Ratio | 2.3 |
| Screen Size Range | 50-500 inch (80-200 inch performance guarantee) |
| Contrast Ratio | 100,000:1 (Min) |
| Noise Level | Normal (90%): 32dB, ECO1 (75%): 27dB, ECO2 (45%): 27dB |
| Uniformity | 80% (Actual Min - JISX6911) |
| Aspect Ratio | Native: 16:10, Compatible: 4:3/16:9/normal |
| Maximum Dimensions (W×H×D mm) | 600 × 218 × 503.3 |
| Net Weight | ~24kg |
| Single Packaging Dimensions (W×H×D mm) | 732 × 352 × 630 |
| Single Gross Weight | ~29kg |
| China | CCC |
| International | CB |
| US | cTUVus, FCC, FDA |
| EU | CE-EMC, CE-LVD, CE-ERP |
