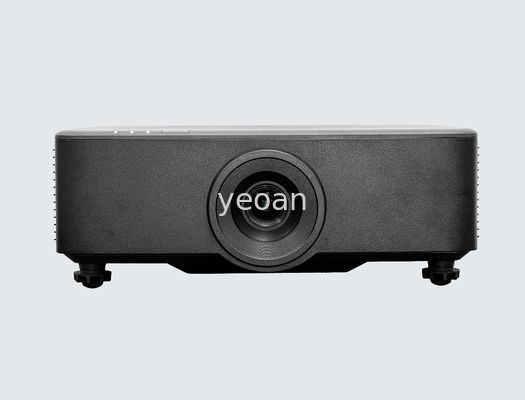

DLP Projection System Competitive 9500Lm Large Venue Projectors With 4 3 Aspect Ratio

Brand Name:	Yeoan
Model Number:	YA-MU10
MOQ:	5
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Light Luminance:

9500 Lumens

Projection Light Source:

Laser

Display Technology:

DLP

Standard Resolution:

1920×1200 Compatible With 1920×1080, 1280×800, 1024×768

Projection Ratio:

Optional Zoom Lens (0.36-5.5 Zoom Range)

Lens Shift Range:

V: +/-50%, H: +/-15%

Aspect Ratio:

16:10 Compatible With 16:9, 4:3

Focus Mode:

Electric Motorized

Keystone Correction:

Automatic, Vertical: ± 20 Degrees Horizontal: ± 20 Degrees

Projection Mode:

360° Projection

Packaging Details:

talked with me to get the details

Highlight:

DLP Projection System Large Venue Projectors

9500Lm Large Venue Projectors

Product Description

DLP Projection System Competitive 9500Lm Large Venue Projectors With 4:3 Aspect Ratio

Key Specifications

Light Luminance: 9500 Lumens
Projection Light Source: Laser
Display Technology: DLP with 0.67" DMD chip
Standard Resolution: 1920×1200 (compatible with multiple formats)
Contrast Ratio: Up to 3,000,000:1
Laser Life: 20,000-30,000 hours
Dustproof: IP6 level protection

Technical Features

Advanced DLP technology with 0.67" DMD chip for superior image quality
High brightness output of 9500 lumens with 3,000,000:1 contrast ratio
Long-life laser light source (20,000-30,000 hours depending on mode)
Flexible projection options with 360° installation capability
Electric motorized focus and zoom with lens shift capability (V: ±50%, H: ±15%)
Automatic keystone correction (±20° vertical/horizontal)
Dustproof IP6 level protection for reliable operation
Advanced network control via RJ-45 and RS-232 interfaces
Aviation-grade testing standards for 24/7 operation

Detailed Specifications

Model	MU10
Projection System	DLP projection system
Chip Size	0.67"DMD
Resolution	1920×1200 (compatible with 4096x2160, 3840x2160, 1920×1080, 1280×800, 1024×768)
Brightness	9500lm (average)
Contrast	1,800:1 static; 10,000:1 dynamic; 3,000,000:1 black
Aspect Ratios	Auto, 4:3, 16:9, 16:10, 16:6, 2.35:1, LBX, Native
Light Source	Laser phosphor materials (Standard: 20,000 hrs, ECO: 30,000 hrs)
Lens Options	Support electric shift/focus/zoom with 5 position memory
Input Ports	Multiple including HDMI (V2.0/V1.4), HDBaseT, VGA, RS232, USB, and network control
Dimensions	480mm (W) × 376mm (D) × 139mm (H)
Weight	13.2kg

Operation & Environment

Power: 100-240V AC±10%, 50/60Hz
Power Consumption: 505W (normal), 260W (ECO)
Noise Level: 30dB (standard), 28dB (ECO)
Operating Temperature: 5-40℃ (no condensation)
Humidity: 10%-85%
Altitude: 0-2500m (high altitude mode above 1500m)

Note: Specifications may vary slightly based on operating conditions and lens configurations. Light source brightness decreases gradually with use. For optimal performance, maintain operating temperature below 35°C at high altitudes.
