| Brand Name: | Yeoan |
| Model Number: | YA-W10 |
| MOQ: | 5 |
| Payment Terms: | L/C, T/T, Western Union |

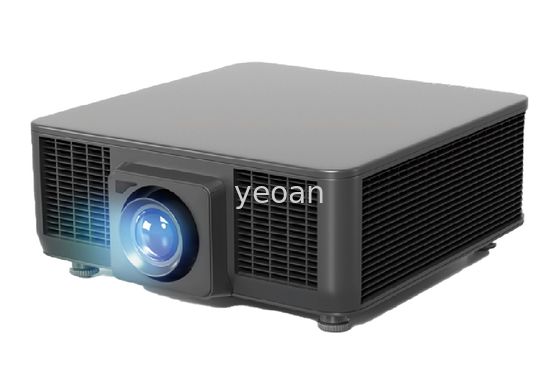

High-performance DLP projection system with laser light source, designed for large venues and professional installations. Features built-in edge blending and geometric correction functions for seamless multi-projector setups.
| Model | YA-W10 |
|---|---|
| Brightness | 10,000 lumens (average) |
| Light Source | Laser (20,000-25,000 hours life) |
| Technology | DLP with 0.67" DMD chip |
| Resolution | 1920×1200 (compatible up to 4096×2160) |
| Contrast Ratio | 3,000,000:1 (extreme black mode) |
| Aspect Ratio | 16:10 (compatible with 16:9, 4:3) |
| Projection Lens | Optional zoom lenses with electric focus/zoom/displacement |
|---|---|
| Input Ports | 2× HDMI 2.0, DVI-D, HDBaseT, 3G SDI, RS232, LAN |
| Power Consumption | 625W (bright mode), 308W (ECO mode) |
| Dimensions | 484×519×178mm (without lens) |
| Weight | ≤17.5kg (without lens) |
| Operating Conditions | 5-40℃, 10-85% humidity, 0-2500m altitude |
Note: Brightness measurements based on ISO/IEC 21118:2012 standard. HDBaseT is a trademark of HDBaseT Alliance. At high altitudes (>1500m) with temperatures >35℃, optical component lifespan may be reduced.
