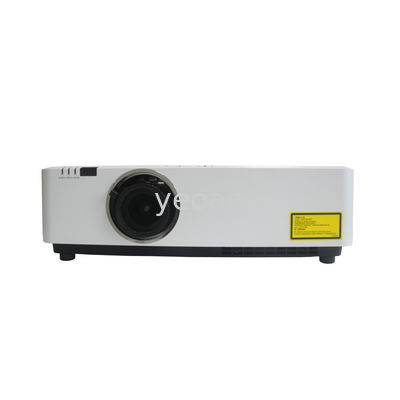

DLP Projector For Large Rooms Lecture Hall 500 Inch Huge Screen Optional Lens

Brand Name:	Yeoan
Model Number:	YAC801
MOQ:	5
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Brightness:

8000lm

Standard Resolution:

1080P (1920 X 1080)

Display Technology:

DLP 0.65dmd

Projection Light Source:

Laser Light Source

Projection Screen:

60-500"

Lens Optional:

Yes

Standard Lens Ratio:

1.17~1.88：1

Contrast Ratio:

5,000,000:1

Aspect Ratio:

Native:16:9 Compatible: 4:3/16:10

Keystone Correction:

V：±30° 4 Corner Correction

Lens Shift:

V:＋50%～10%、 H:±8%

Zoom Ratio:

1.6x Manual

Packaging Details:

Packaging Box Dimensions (WxDxH mm): 574（W)*554(D)*268(H)

Highlight:

DLP Projector For Large Rooms

Lecture Hall DLP Projector

Product Description

DLP Projector For Large Rooms Lecture Hall 500 Inch Huge Screen Optional Lens

Professional-Grade Projection Solution

High-performance 1080P, 8000 lumens professional installation projector engineered for large venues including meeting rooms, auditoriums, museums, and broadcast environments. Features laser light source with IP5X-certified optical engine for up to 30,000 hours (Eco) of maintenance-free operation.

Key Specifications

Attribute	Value
Brightness	8000lm
Standard Resolution	1080P (1920 x 1080)
Display Technology	DLP 0.65dmd
Projection Light Source	Laser light source
Projection Screen	60-500"
Lens Optional	Yes
Standard Lens Ratio	1.17~1.88:1
Contrast Ratio	5,000,000:1
Aspect Ratio	Native:16:9 Compatible: 4:3/16:10
Keystone Correction	V:±30° 4 Corner Correction
Lens Shift	V:＋50%～10%、 H:±8%
Zoom Ratio	1.6x manual

Advanced Features

Optional five lens configurations from standard long throw to short throw
Integrated image warping and blending capabilities
Four corner adjustment and lens position memory
360° projection capability
3D ready with edge blending support
LAN control compatibility (Crestron, AMX Discovery, PJ Link)
Multi-language OSD with 26 language options

Technical Specifications

Display Specifications
Panel	0.65" DMD
Native Resolution	1080P (1920 x 1080)
Contrast Ratio (FOFO)	5,000,000:1
Uniformity (JISX6911)	95%
Light Source
Type	Laser
Life (Normal Mode)	20,000 hours
Life (ECO Mode)	30,000 hours
Projection Lens
F	2.4
f	17.2~27.7mm
Zoom/Focus	Manual
Screen Size	60-500 inch

Applications

Large venue installations
Corporate meeting rooms
Educational classrooms
Hospitality venues
Healthcare facilities
Religious institutions
Industrial facilities
Broadcast environments

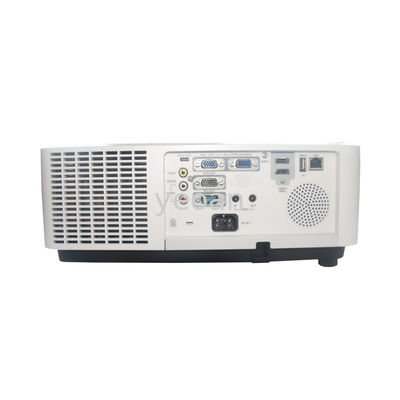

Connectivity

Input	Output
VGA ×2 HDMI 1.4B ×2 HD BaseT ×1 (Optional) Video ×1 Audio (RCA) ×2 Audio (3.5mm) ×1	VGA ×1 Audio (3.5mm) ×1
Control
RS232 ×1 RJ45 ×1 (Control) USB-B ×1 (For upgrade) USB (Type A) ×1
