| Brand Name: | Yeoan |
| Model Number: | YA555 |
| MOQ: | 5 |
| Payment Terms: | L/C, T/T, Western Union |
| Standard Resolution | WUXGA (1920 x 1200) |
|---|---|
| Display Technology | 3LCD |
| Light Source | Laser |
| Brightness | 6000lm |
| Projection Ratio | 1.08~1.76：1 |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Focus mode | Manual |
| Keystone Correction | V: ±30° H:±30° |
| Lens shift | V:＋44%～0%、 H:±20% |

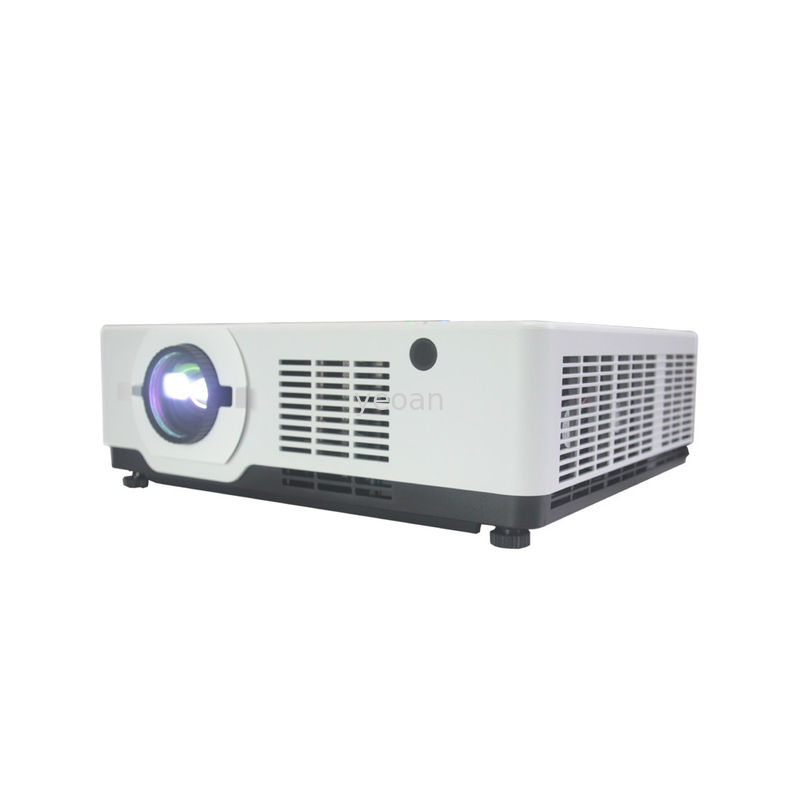

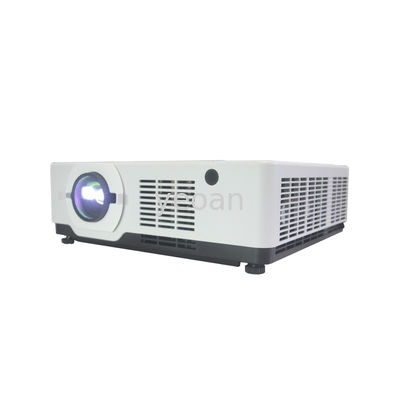

The Series features 6,000lm WUXGA 3LCD Projectors with a refined Multi-Laser Drive Engine for the optimal balance of high brightness, vivid color, and low-maintenance operation. Compact and lightweight body, designed with ultra-low noise operation (37dB). Edge Blending function enables versatile space creation.
Ideal for various environments including home theaters, classrooms, offices, meeting rooms, hotels, hospitals, schools, churches, and industrial facilities.
| Resolution | WUXGA (1920 x 1200) |
|---|---|
| Brightness (MKT/TYP/MIN) | 6000/5500/4800 lm |
| Display Panel | 3x0.64" with MLA |
| Light Source Lifetime | 20,000-30,000 hours (depending on mode) |
| Projection Lens | F:1.58-2.02, f:15.3mm-24.6mm |
| Screen Size | 30-300 inch |
| Contrast Ratio | 5,000,000:1 |
| Noise Level | 37dB (Normal), 29dB (ECO1), 27dB (ECO2) |
| Power Consumption | 350W (Normal), 240W (ECO1), 220W (ECO2) |
| Operating Temperature | 0 to 40°C |
| Dimensions (WxDxH) | 405 x 358 x 137 mm |
| Weight | 7.9 kg (net), 10.4 kg (gross) |
Comprehensive I/O ports including HDMI, VGA, USB, RJ45, RS232, and optional HD BaseT. Supports wireless display through optional module for smartphones and PCs.
