| Brand Name: | Yeoan |
| Model Number: | YD047E |
| MOQ: | 50 |
| Payment Terms: | L/C, T/T, Western Union |
This pocket-sized projector delivers clear, bright video and imaging for entertainment, office, and creative applications. With an adjustable screen size up to 80 inches, it's ideal for screen mirroring (PPT presentations, videos) and image/text tracing.
Features multiple wired and wireless connectivity options including built-in Micro USB, USB, HDMI, AV, and Micro SD ports. Includes HDMI and Micro USB cables for easy connection to cameras, storage drives, PCs, laptops, and other compatible devices.
The projector supports 4K video display, features a smart Android operating system with built-in battery, and includes WiFi sharing capabilities for home theater use.
Ideal for use in homes, offices, meeting rooms, classrooms, hotels, hospitals, schools, churches, factories, and more.
| Model | YD047E |
| Display Technology | DLP 0.2" DMD |
| Native Resolution | 854*480p |
| Video Display Resolution | 4K |
| Light Source | LED RGB |
| Brightness | 70 ANSI LUMEN |
| Light lifetime | 30,000 Hours |
| Projection Ratio | 1.2:1 |
| Projection Size (Recommend) | 20-80 Inch |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 350:1 |
| Projection Distortion | <0.8％ |
| Light Uniformity | >85% |
| Focus Mode | Manual |
| Keystone Correction | Manual horizontal, Auto vertical: 40 D |
| Projection Mode | Front, Rear, Ceiling, Rear Ceiling, Auto |
| Operation System | Android 9.0 |
| CPU | RK3228A 4-core A7 1.5Ghz |
| GPU | Mali-400MP2 GPU |
| Memory RAM | 1 GB |
| Flash Storage | 8 GB |
| WIFI | Dual 5G | 2.4G |
| Bluetooth | BT 4.2 |

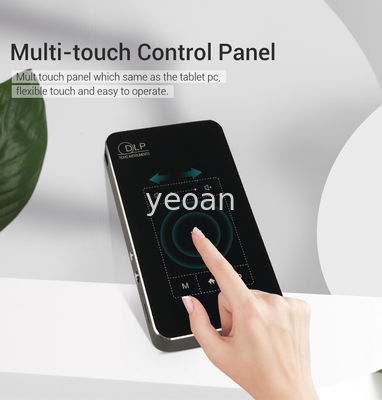

| Setting & Control | TouchPad | Remote | Mouse | Keyboard |
| Smart Screen Mirror | Eshare/Airplay/MiraCast |
| Mirroring System | HDMI |
| Internal Speaker | 1 Watt X 1 |
| Internal Battery Capacity | 5,000 MAH |
| Battery Play Time (Typical) | 2 Hours |
| HDMI | HDMI IN X 1 |
| USB | USB2.0 X 2 |
| Audio | 3.5 Earphone X 1 |
| TF | Micro SD X 1 |
| Power IN | DC 5V IN |
| Neutral Color | Black |
| Projector Size | Weight | 145*77*17.5 mm | 280 g |
| Power Adaptor | 5V3A Charger X 1 |
| Remote | IR Remote X 1 |
| HDMI Cable | HDMI Cable X 1 |
| User Manual | User Guide X 1 |
| Tripod | Small Triod X 1 |
| BOX Size | Weight | 185X 155x85 mm | 930 g |
| Carton Size | Weight | 390*357*335 mm | 12.35 kg |
| Pcs per Carton | 16 |
