Large Venue Projector DLP Optional Lens 500 Inch Huge Screen WUXGA High Resolution

Large Venue Projector DLP Optional Lens 500 Inch Huge Screen WUXGA High Resolution

Brand Name: Yeoan
Model Number: YAC841
MOQ: 5
Payment Terms: L/C, T/T, Western Union
Detail Information
Brightness:
8400lm
Standard Resolution:
WUXGA (1920 X 1200)
Display Technology:
DLP
Projection Light Source:
Laser
Projection Screen:
60-500"
Lens Optional:
Yes
Standard Lens Ratio:
1.17~1.88:1
Contrast Ratio:
5,000,000:1
Aspect Ratio:
Native:16:10 Compatible: 4:3/16:9
Focus Mode:
Manual
Keystone Correction:
V:±30° 4 Corner Correction
Lens Shift:
V:+50%~10%、 H:±8%
Packaging Details:
Packaging Box Dimensions (WxDxH mm): 574(W)*554(D)*268(H)
Highlight:

WUXGA Large Venue Projector

,

DLP Large Venue Projector

,

500 Inch Large Venue Projector

Product Description
Large Venue Projector DLP with Optional Lens
500 Inch Huge Screen WUXGA High Resolution
Key Features
500-inch projection capability for immersive viewing experience
30,000 hours laser light source life (ECO mode)
5,000,000:1 dynamic contrast ratio for superior image quality
Low noise operation (36dB in ECO mode)
HDBaseT interface for high-definition signal transmission
10W integrated speaker system
3D video mode support
Technical Specifications
Brightness 8400lm (7560lm typical)
Resolution WUXGA (1920 x 1200)
Technology DLP with 0.67" DMD
Light Source Laser (IP5X-certified optical engine)
Screen Size 60-500 inches
Contrast Ratio 5,000,000:1
Aspect Ratio Native 16:10 (Compatible 4:3/16:9)
Throw Ratio 1.17-1.88:1 (Standard lens)
Lens Shift Vertical: +50% to -10%, Horizontal: ±8%
Keystone Correction Vertical: ±30° with 4 corner correction
Installation Flexibility
360° projection capability for versatile mounting
Multiple projection methods: front, rear, ceiling-mounted
Optional five lenses from standard long throw to short throw
Integrated image warping and blending for complex installations
Lens position memory for quick setup changes

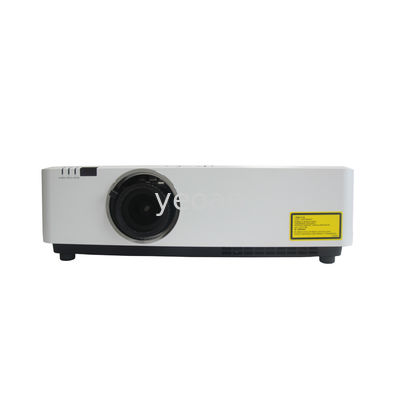

Large Venue Projector DLP Optional Lens 500 Inch Huge Screen WUXGA High Resolution 0
Applications
Large meeting rooms and auditoriums
Museums and houses of worship
Broadcast and production environments
Educational institutions and corporate training facilities
Hospitality venues and healthcare facilities
Connectivity
2x VGA inputs
2x HDMI 1.4B inputs
Optional HDBaseT input
RS232 and RJ45 control ports
Audio input/output options

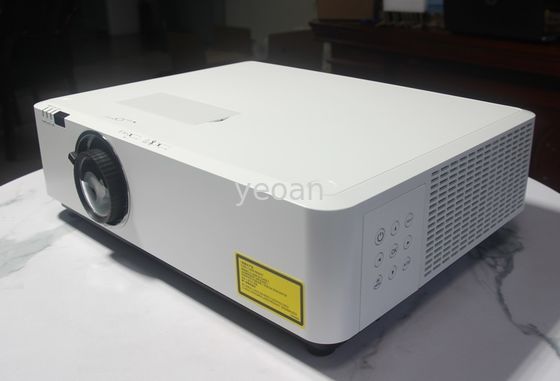

Large Venue Projector DLP Optional Lens 500 Inch Huge Screen WUXGA High Resolution 1
