Electric Motorized Focus 8000Lm DLP Projection System For Large Venue Conferences

Brand Name:	Yeoan
Model Number:	YA-MU9
MOQ:	5
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Light Luminance:

8000 Lumens

Projection Light Source:

Laser

Display Technology:

DLP

Standard Resolution:

1920×1200 Compatible With 1920×1080, 1280×800, 1024×768

Projection Ratio:

Optional Zoom Lens (0.36-5.5 Zoom Range)

Lens Shift Range:

V: +/-50%, H: +/-15%

Aspect Ratio:

16:10 Compatible With 16:9, 4:3

Focus Mode:

Electric Motorized

Keystone Correction:

Automatic, Vertical: ± 20 Degrees Horizontal: ± 20 Degrees

Projection Mode:

360° Projection

Packaging Details:

talked with me to get the details

Highlight:

Large Venue DLP Projection System

Electric Motorized Focus DLP Projection System

8000Lm DLP Projection System

Product Description

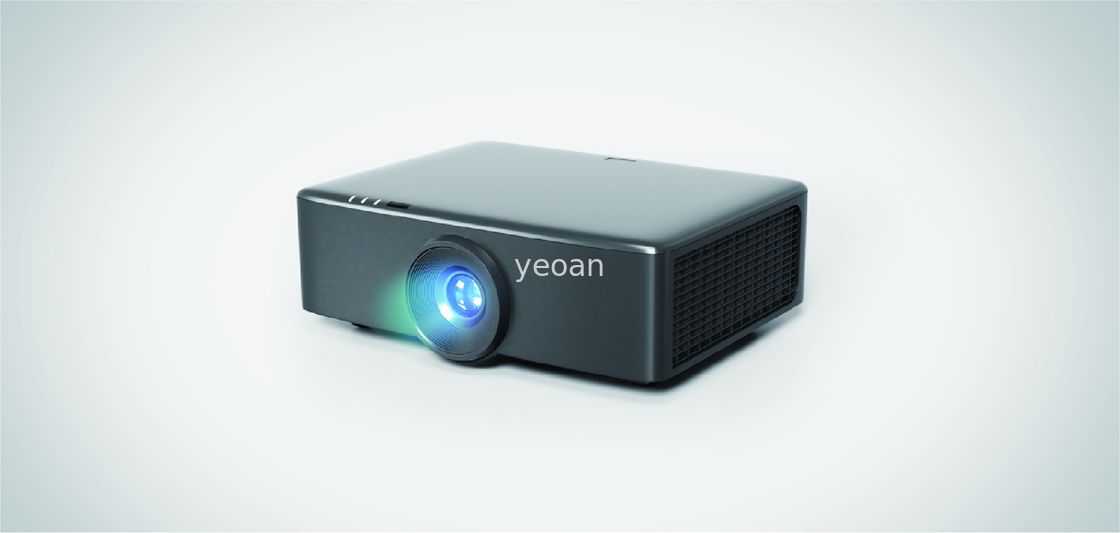

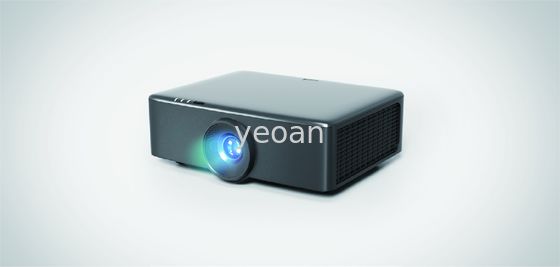

Electric Motorized Focus 8000Lm DLP Projection System For Large Venue Conferences

Key Specifications

Light Luminance	8000 Lumens
Projection Light Source	Laser
Display Technology	DLP
Standard Resolution	1920×1200 (compatible with 1920×1080, 1280×800, 1024×768)
Projection Ratio	Optional zoom lens (0.36-5.5 zoom range)
Lens Shift Range	Vertical: ±50%, Horizontal: ±15%
Aspect Ratio	16:10 (compatible with 16:9, 4:3)
Focus Mode	Electric motorized
Keystone Correction	Automatic, vertical: ±20°, horizontal: ±20°
Projection Mode	360° projection

Advanced Features

DLP technology with 0.67" DMD chip for superior image quality
High brightness up to 9000 lumens with 3,000,000:1 contrast ratio
Long-life laser light source (25,000 hours in ECO mode)
Dustproof IP6 level protection for reliable operation
Four-corner keystone adjustment for flexible installation
Advanced color setting function for precise image calibration
RJ-45 interface supports network control and centralized management
Aviation-grade testing ensures 24/7 operation capability

Technical Specifications

Model: MU9
Projection System: DLP projection system
Chip Size: 0.67"DMD
Light Source: Laser phosphor (20,000-25,000 hours life)
Throw Ratio: 1.22-1.52 (with optional lenses available)
Installation: Horizontal/vertical 360° free installation
Dimensions: 486mm × 376mm × 181mm (W×D×H)
Weight: 12.7kg
Noise Level: 28-30dB (energy saving-standard mode)

Connectivity Options

HDMI (V2.0 compatible 4K support HDCP) ×2
HDMI (v1.4 supports HDCP) ×1
15-pin Mini-Dsub ×1
HDBaseT ×1
3D-Sync ×1
Audio (3.5mm port) ×1
RJ45 (network control) ×1
RS232 (D-sub 9pin) ×1
USB-A ×2 (Wireless LAN & DC5V)
USB-B ×1 (software upgrade)

Note: Specifications are based on international standards ISO/IEC 21118:2012. Performance may vary based on environmental conditions. For high altitude use (above 1500m), activate high altitude mode.
