| Brand Name: | Yeoan or OEM |
| Model Number: | YA906 |
| MOQ: | 5 |
| Payment Terms: | L/C, T/T, Western Union |
| Attribute | Value |
|---|---|
| Brightness | 10000lm |
| Standard Resolution | WUXGA (1920 x 1200) |
| Display Technology | 3LCD |
| Projection Light Source | Laser |
| Standard Lens Ratio | 1.30-3.02：1 |
| Contrast Ratio | 100000:1 |
| Standard Lens shift | V:＋50%～10%、 H:±20% |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Focus mode | Manual or Auto optional |
| Keystone Correction | V: ±30° H：±30° |

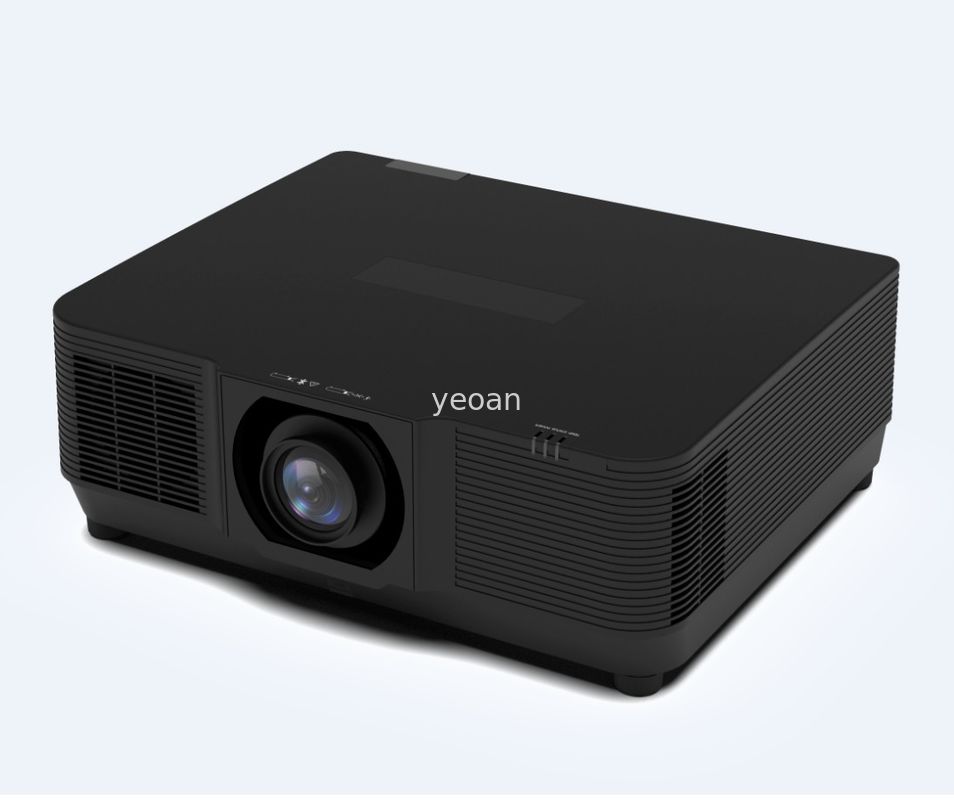

The projector is a most efficient WUXGA large venue projector with versatility in applications. This projector offers incredibly brightness up to 10,000 lumens and supports motorized lenses, with lens positioning memory to cater for any installation requirements.
Its maintenance-free reliable operation for up to 30,000 hours with constant brightness and color uniformity by the optional IP6X sealed engine design, making this series perfect for large venues, such as auditoriums, lecture halls, sports arenas, and both rental and staging markets.
Applications:
| Key parts | Details |
|---|---|
| Lens | optional |
| Light source | Laser |
| Brightness (Bright Mode) (Ansi Lumens) | 10000lm |
| Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light source Lifetime | Normal mode: 20000hrs ECO mode: 20000hrs |
| Projection Lens | Zoom/Focus: Powered Throw Ratio(16:10): 1.30-3.02 F: F1.7~2.0 f: 21.8-49.8 Zoom Ratio: 2.3 |
| Screen size (Performance guarantee range) | 50-500 inch (80-200 inch) |
| Lens Shift | V: +50%,-10% H: ±20% |
| Contrast Ratio(Min) | 100000:1 |
| Noise(dB) | Normal(90%): 35dB ECO1(75%): 32dB ECO2(45%): 32dB |
| Uniformity(Actual Min)-JISX6911 | 80% |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal |
| Type | Details |
|---|---|
| Input | VGA: *1 HDMI 1.4(IN): *2 USB-A: *1 (5V/1.5A) USB-B: *1(Display) RJ45: *1(Display) DVI-D: *1 HD BaseT: *1 HD-SDI(3G-SDI): Optional Video: N/A Audio in (mini jack,3.5mm): *1 (VGA/DVI-D share) |
| Output | VGA/VGA IN: *1 HDMI 1.4(OUT&IN): *1 Audio out(mini-jack,3.5mm): *1 |
| Control | RS232: *1 RJ45: *1 (Control) USB-B: *1 (For upgrade) Wired Remote(IN): *1 Wired Remote(OUT&IN): *1 |
| Category | Details |
|---|---|
| Audio | Speaker: N/A |
| Cooling | Dust filter free: Closed inner circulation design |
| Power Consumption | Power Requirements: 100~240V@ 50/60Hz Power Consumption (Boost) (Max): 850 Power Consumption (Normal) (Max): 750 Power Consumption (ECO1) (Max): 650 Power Consumption (ECO2) (Max): 450 ECO Standby Mode Power Consumption: <0.5W |
| Operating Conditions | Operating Temp.: 5 to 40°C Operating humidity: 20-80% Store Temp.: -10 to 50°C Store Humidity: 20-80% |
Application: Widely used outdoor projection, extra-large meeting rooms/househall/Academic Lecture Hall/hospital hall/big church/factory workshop and so on.
Packed with two 5-layer double corrugated carton
Yeoan was established in 2009. We have been engaged in the research and development, production and sales of video and audio products since establishment.
After more than ten years of hard work, we have become one of the leaders in this field.
Our main mission is to provide the best visual and auditory experience through a series of excellent audio-visual solutions, so that you can see and hear every detail accurately and clearly in your life and work.
We stand on the principle of reputation first and quality first, and we offer customized service for each customer in different regions and countries.
The most important is that we provide customers with accurate and stable delivery time, and efficient and high-quality after-sales guarantee.
Our products have a high reputation and occupancy rate both in domestic and foreign markets through continuous efforts.
We are the factory which have engaged in the research and development, production and sales of audio and video products since establishment.
Main products including projectors and its screen.
We can provide customized solutions according your requirements, such as personalized feature or package or brands based on the MOQ.
Generally is about 25 - 30 days if the products are out of stock or customized order.
TT(bank transfer), LC at sight all will be accepted.
Yes, we can provide a DEMO machine for testing.
