| Brand Name: | YEOAN |
| Model Number: | QM-43 |
| MOQ: | 50 |
| Payment Terms: | L/C, T/T |

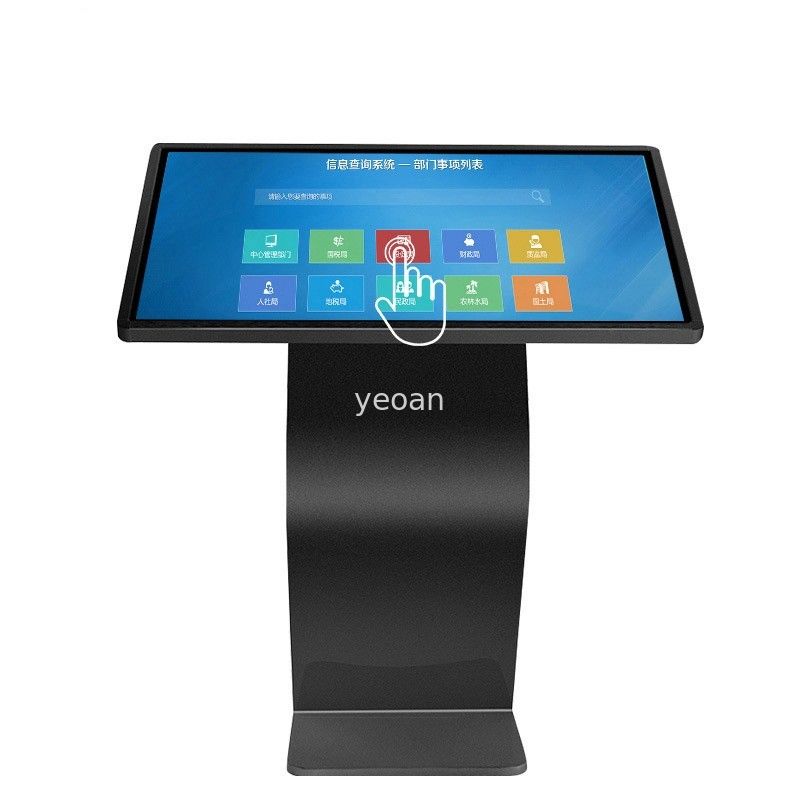

This professional-grade 43" touch screen kiosk features a full HD LCD panel with wide 178-degree viewing angles, high contrast, and brightness. The responsive 3D interactive touch display enables smooth handwriting, drawing, and annotation functions with no delay. Its stylish, durable design is ideal for high-traffic environments like hotel lobbies, shopping malls, supermarkets, and libraries.
| Display Parameters | |
|---|---|
| Screen Size | 43" |
| Resolution | 1920×1080 pixels |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° (H/V) |
| Response Time | 8ms |
| Touch Points | 10-point infrared |
| System Specifications | |
|---|---|
| Processor | RK3566 Quad-core Cortex A55 (1.8GHz) |
| Memory | 2GB RAM |
| Storage | 16GB |
| Operating System | Android 11 |
| Connectivity | HDMI, VGA, USB 2.0/3.0, Ethernet, WiFi |
The infrared touch technology provides fast response with strong light resistance, supporting smooth handwriting recognition and multi-touch gestures without requiring additional drivers.
The full HD LCD panel with 3D digital noise reduction technology eliminates residual images and ghosting for crisp, stable visuals with realistic color reproduction and 16.7 million colors.
Supports TCP/IP network control through Ethernet or WiFi, enabling remote management and content distribution across local networks or the internet for large-scale deployments.
Industrial-grade aluminum frame with tempered glass and metal back cover ensures durability. The design includes efficient heat dissipation and easy maintenance access.
| Dimensions (W×H×D) | 995.1 × 589 × 63.5 mm |
| Weight | 34 kg (net), 38 kg (gross) |
| VESA Mount | 400 × 400 mm (4 × M8 screws) |
| Power Consumption | ≤100W (AC 110V-220V, 50-60Hz) |
| Operating Environment | 0℃ to 40℃, 20% to 85% humidity |
