Brand Name: | YEOAN |
Model Number: | QM-55 |
MOQ: | 50 |
Payment Terms: | L/C, T/T |
Attribute | Value |
---|---|
Screen Size | 55 inches |
Resolution | 1920x1080 |
Display Type | LCD |
Viewable area | 1209.6*680.4 mm |
Pixel pitch | 0.63* 0.63mm |
Viewing Angle | 178° |
Response Time | 8 ms |
Contrast Ratio | 1200:1 |
Brightness | 350 cd/m² |
Connectivity | HDMI, VGA, USB |
Touch Screen | yes |
Operating System | Android or windows |

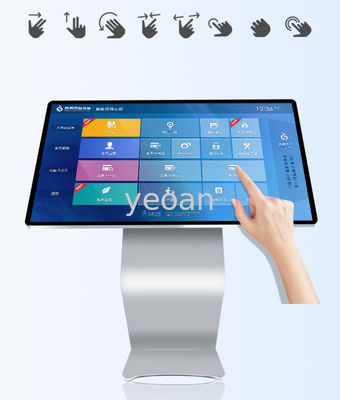

The touch all-in-one machine is composed of advanced touch screen, motherboard (high-performance, low-power industrial-grade special motherboard, Intel processor), memory, hard disk (high-speed solid-state hard disk), graphics card and other electronic components. It is the same as the working principle of traditional PC.
The appearance structure of the touch all-in-one machine adopts ergonomic design, which is slim and beautiful, simple and elegant. The body shell is made of high-quality cold-rolled plate, and the surface is industrial-grade paint process wear-resistant design, rust-proof, anti-magnetic, and anti-static.
Through the intelligent operation platform, it can realize public information query, advertising display, media interaction, conference content display, offline experience store product display, etc. The operation is simple, fast, safe and stable, meeting more daily interactive display needs, and supporting 7X24 hours of uninterrupted and smooth operation.
Category | Specification |
---|---|
Display parameters |
Panel size: 55" Resolution: 1920*1080(pixels) Pixel pitch: 0.63* 0.63mm Brightness: 350cd/m² (typ.) Contrast: 1200:1 (typ.) Color: 16.7M (8bit) Response time: 8ms (typ.) Viewing area (H*V): 1209.6*680.4 mm Angle (H*V): 178°/178° Service life: 30,000 hrs (typ.) |
Mainboard parameters (optional) |
Windows motherboard (2K solution) Running the system: Win 7/Win 10 Chip: I5-3210M Dual-core four-thread main frequency 2.5GHz Memory: 4G Storage: 128G Network: 100M/1000M Ethernet/WiFi-2.4G |
Touch parameters |
Touch Type: Infrared touch Touch points: 10 point |
Power supply |
Speaker power: 5W*2 Standby power: ≤0.5W Power supply for the whole machine: AC110V-220V, 50-60 Hz Machine power: ≤150W |
Work Environment |
Operating temperature: 0℃~40℃ Operating humidity: 20%~85% (No condensation) Storage temperature: -10℃~60℃ Storage humidity: 10%~ 60% (No condensation) |
Material |
Housing Material: Aluminum frame + tempered glass + metal back cover Shell color: Silver + black frame + black back cover |
Dimensions |
Bare metal size (W*H*D): 1275.2*754.2*73.9 mm External dimensions of packaging (W*H*D): 1350*848*160 mm VESA hole: 400*400mm, 4*M8 screw |
Weight |
Net weight: 50KG Gross Weight: 55KG |
